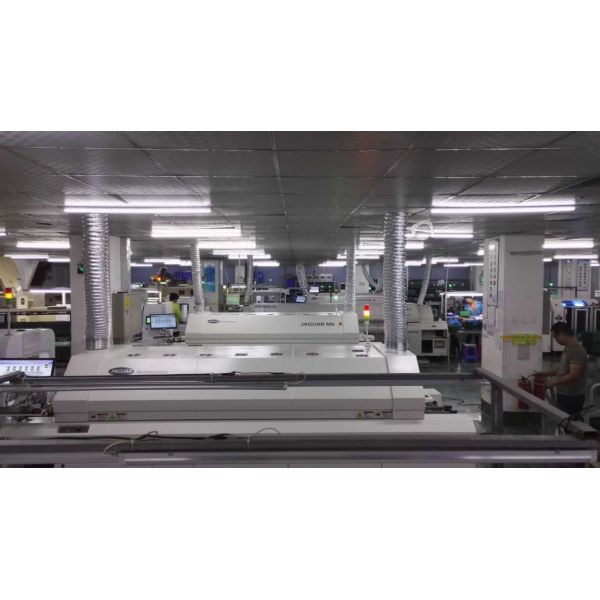

Lead Free Hot Air Reflow Oven M8
Specification:
| Model | JAGUAR M8 |
| Heating System | Number of heating zones | Top 8 Bottom 8 |
| Heating passage | 2900MM |
| Heating style | Hot air |
| Cooling Zone | Top 1 Bottom 1 |
| Cooling style | Force cooling air |
| Conveyor System | Max. Width of PCB | 320mm |
| Mesh belt width | 400mm |
| Conveyor Direction | L→R(or R→L) |
| Process Height | 900±20mm |
| Conveyor type | Mesh and chain |
| Conveyor speed | 0-1500mm/min |
| Auto/manual Lubrication | standard |
| Hood opening | Electric screw pole with secondary support |
| Fixed track | Front track fixed(option: rear track fixed) |
| Product clearance | Top and bottom 25mm |
| Control system | Power supply | 5line 3phase 380V 50/60Hz |
| Total power consumption | 30kw |
| Startup consumption | 26kw |
| Steady consumption | 5-8KW |
| Ramp up time | About 25 mins |
| Temp. set-point range | Room temperature-300℃ |
| Temp. control method | PLC + PC |
| Temp. control precision | ±1.5℃ |
| Temp. deviation on PCB | ±2℃ |
| Data storage | Process Data and status storage(80GB) |
| Nozzle plate | Aluminum Alloy Plate |
| Abnormal Alarm | Abnormal temp. (over-temp/low temp.) |
| Board dropped alarm | Standard configuration |
| 3 Color Tower light | Amber-warming,Green-normal,Red-abnormal |
| UPS | Standard configuration |
| General | Dimension(L*W*H) | 4600×1100×1490mm |
| Weight | 1000KG |
| Color | Computer gray |
- JAGUAR's M8 Lead-free Hot Air Reflow Oven, is one of JAGUAR Economic Series, also is a Basic model of Reflow Oven.
- Compact machine size can meet some customer's compact plant space.
- Independent up and bottom heating for Pre-heating Zone, Soldering Zone and Cooling Zone
- Independent recycle, Independent temp. control, Independent cooling zone
- Modular design, convenient to maintenance
Advantages
The Unique Advanced Long Life Heating System
1. The heating system use Jaguar's patented heating technology.
2. Use international famouse brands high voltage SSR, non-touch output, safe and reliable, configure special radiator, radiation efficent greatly improved, and it's service life is effectively extended.
3. The heater use international high quality components, ensure whole system's high stable and reliable, to ensure the longer service life.
4. Combined temp. contoller's special PID's fuzzy control funtion, always monitor extenal temp. and heat value changes, the heating device is controlled with minumum pulsation, react quickly, to ensure temp. control precision, machine's internal temp. distribution error is very small, temp. distribution comforms to the IPC standard.
5. PC+PID intelligent computing precision controller, through PID intelligent computing, to control heating volume automaticly, fuzzy control function to respond the change in external heat with the fastest speed, and through internal control to ensure temp. more balance.
